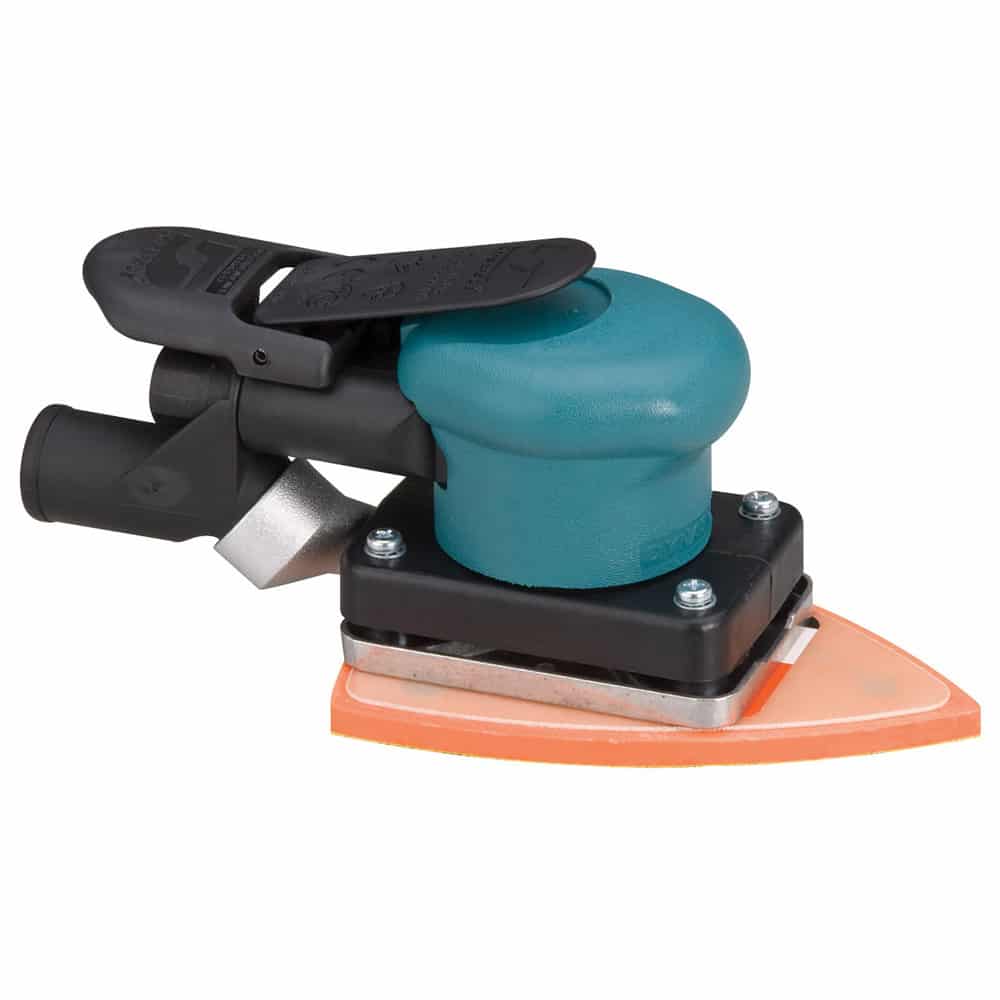

- Powerful .15 hp (112 W), 10,000 RPM air motor gets the job done in countless applications, utilizing just 13 SCFM (368LPM) at 90 PSI (6.2 Bar).
- Precise 3/32″ orbital motion is ideal for achieving a controlled, ultra-fine finish on a variety of surfaces. Compact size is ideal for all operators, including those with smaller hands.
- Engineered and tested to ensure less tool vibration than any competitive model! Lighter tool weight minimizes hand and arm fatigue. Perfect for vertical applications. Rectangular shape sands deep into corners, where round pads cannot reach.
- Central Vacuum DynabugII has 1″ outside diameter vacuum port, ready for connection to external vacuum source.
- Includes 56323 ‘Delta Style’ Vacuum Sanding Pad, 99 mm wide (at wider end) x 143 mm long (approximately 4″ x 5-3/4″), with seven vacuum holes. Unique pad has curved edges for sanding rounded areas, and pointed tip for reaching into tight corners. Comfort Platform provides additional hand and wrist support, further enhancing operator comfort. Also offers increased protection against cold air exhaust. (NOTE: Comfort Platform is removable.) Order 59330 Comfort Platform (U.S. Patent No. D610,428) separately, to install on existing tools!
Tool Specifications
Mfr. Model # 58506
| hp | 0.15 |
|---|---|
| Max. Air Flow [SCFM] | 13.0 |
| Max. RPM | 10,000 |
| Orbit Dia. [inches] | 3/32″ |
| Pad Face | Hook-Face |
| Pad Mounting Style | 4 Screws |
| Vacuum Connection Size [inches] | 1″ |
| Abrasive Width [inches] | 3.875 |
| Exhaust Type | Rear |
| CE Certified | Yes |
| EAC Certified | Yes |
| Height [inches] | 3.5 |
| Length [inches] | 8.75 |
| Weight [pounds] | 1.8 |
| Width [inches] | 6.5 |
| Hose I.D. [inches] | 1/4″ |
| Vacuum Type | Vacuum |
| EAN (UPC) Code | 0616026585065 |
| Motor Type | Rotary Vane |
| Tool Style | Palm |
