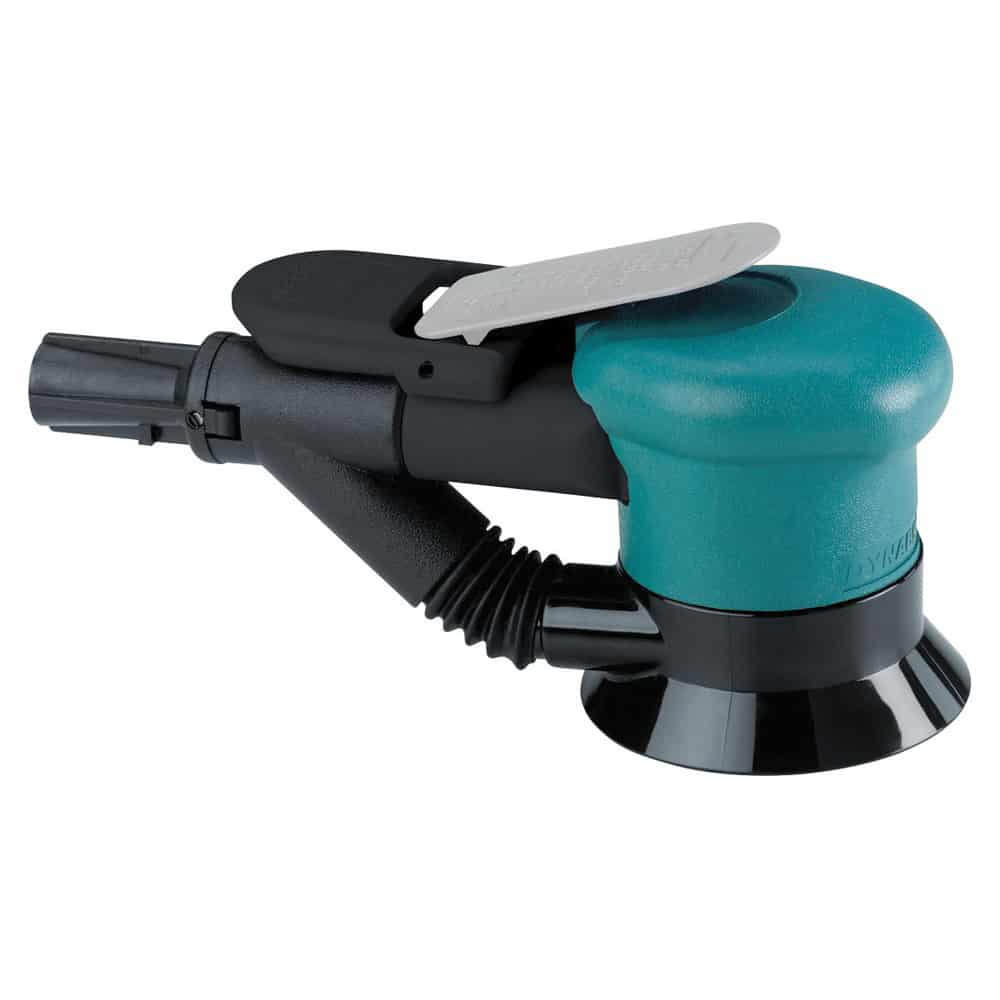

- 3″ (76) diameter Self-Generated HiVac Dynorbital-Spirit efficiently vacuums through 6-hole sanding pad and unique shroud design. Ergonomically designed to the highest standards of Dynabrade technology. Sanding pad is weight-mated to tool, ensuring low vibration and smooth finishes. Tool weight of 1.3 pounds (0.6 kg) minimizes operator fatigue.
- Innovative V-Seal protects double row balancer bearing from sanding residue for longer tool life. Unique Top Hat seal protects front motor bearing from contaminants while maintaining bearing lubrication.
- Vacuums directly through the tool’s exhaust, with 1″ vacuum port connected to optional portable dust collection system. Includes 56143 Vacuum Sanding Pad (6 holes, medium density hook-face). Pad accepts 3″ diameter hook-face or mesh-style abrasive discs (sold separately).
- 3/16″ (5) diameter orbit.
- Comfort Platform provides additional hand and wrist support, further enhancing operator comfort. Also offers increased protection against cold air exhaust. (NOTE: Comfort Platform is removable.) Order 59330 Comfort Platform (U.S. Patent No. D610,428) separately, to install on existing tools!
Tool Specifications
Mfr. Model # 59115
| hp | 0.25 |
|---|---|
| Max. Air Flow [SCFM] | 14.0 |
| Max. RPM | 12,000 |
| Orbit Dia. [inches] | 3/16″ |
| Pad Dia. [inches] | 3″ |
| Pad Face | Hook-Face |
| Tool Spindle Thread | 5/16″ – 24 Female |
| Exhaust Type | Rear |
| CE Certified | Yes |
| EAC Certified | Yes |
| Height [inches] | 3.25 |
| Length [inches] | 7.75 |
| Weight [pounds] | 1.5 |
| Width [inches] | 6.5 |
| Hose I.D. [inches] | 1/4″ |
| Vacuum Type | Self Generated Vacuum |
| EAN (UPC) Code | 0616026591158 |
| Tool Style | Palm |
