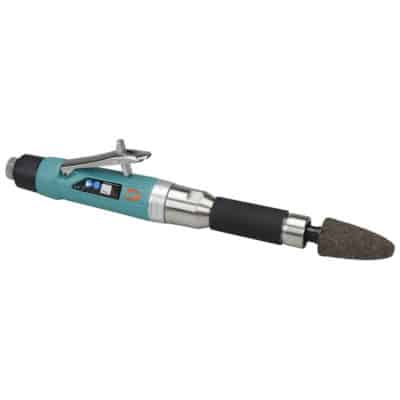

Dynabrade 52719 Cone or Plug 6" (152 mm) Extension Wheel Grinder, 12,000 RPM, 3/8"-24 Male Thread Spindle

Dynabrade 52719 Cone or Plug 6" (152 mm) Extension Wheel Grinder, 12,000 RPM, 3/8"-24 Male Thread Spindle_1

Dynabrade 52719 Cone or Plug 6″ (152 mm) Extension Wheel Grinder, 12,000 RPM, 3/8″-24 Male Thread Spindle

$755.00

1 hp, Straight-Line, 12,000 RPM, Rear Exhaust, 3/8″-24 Spindle Thread

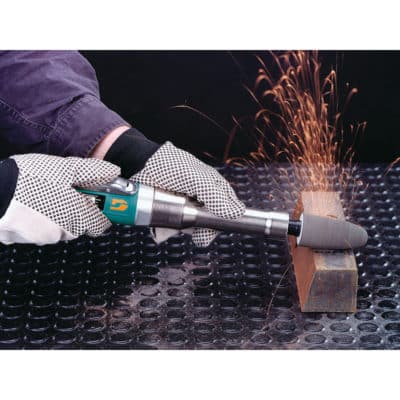

Cone or Plug Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
Straight Line, 1 hp, Rear Exhaust, 6″ Extension, 12,000 RPM.
Accepts optional Abrasive Cone or Plug Wheel, 1-1/4″ diameter. Governor-controlled motor maintains RPM under heavy load.
Safety-lock lever is included on all models. Standard cushioned grip enhances operator comfort and offers additional control.
Industrial applications in fabrication plants, welding shops, foundries, steel mills and shipyards.

Tool Specifications

Mfr. Model # 52719

hp	1.0
Max. Air Flow [SCFM]	38.0
Max. RPM	12,000
Tool Spindle Thread	3/8″- 24 Male
Air Inlet Thread	3/8″ NPT
Exhaust Type	Rear
CE Certified	Yes
EAC Certified	Yes
Height [inches]	1.875
Length [inches]	13.25
Weight [pounds]	3.4
Width [inches]	5.75
Hose I.D. [inches]	3/8″
Vacuum Type	Non-Vacuum
EAN (UPC) Code	0616026527195
Tool Style	Straight Line

Parts

Parts Page	52719
Tune-Up Kit Page	96532
Drop-in Motor	01911

Disassembly/ Assembly Instructions

Disassembly/ Assembly Instructions

Air Tool Maintenance Guide

Tool Maintenance Guide

Dynabrade 52719 Cone or Plug 6″ (152 mm) Extension Wheel Grinder, 12,000 RPM, 3/8″-24 Male Thread Spindle

Tool Specifications

Parts

Disassembly/ Assembly Instructions

Air Tool Maintenance Guide
