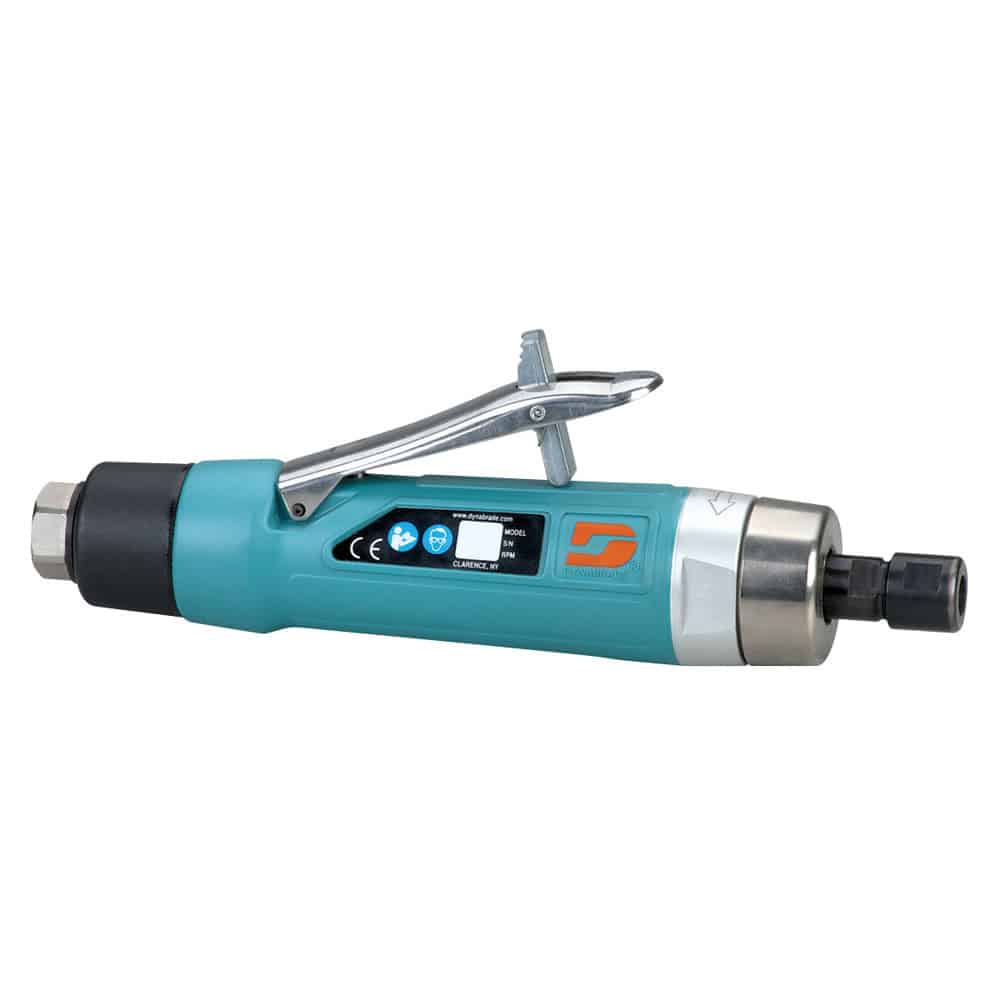

Dynabrade 52666 1 hp Straight-Line Die Grinder, Rear Exhaust, 12,000 RPM, 1/4″ Collet
$607.00
12,000 RPM, Planetary-Geared, Rear Exhaust, 1/4″ Collet
Tool Specifications
Mfr. Model # 52666
| Collet Insert Size | 1/4″ & 6 mm |
|---|---|
| hp | 1.0 |
| Max. Air Flow [SCFM] | 43.0 |
| Max. RPM | 12,000 |
| Air Inlet Thread | 3/8″ NPT |
| Exhaust Type | Rear |
| CE Certified | Yes |
| EAC Certified | Yes |
| Height [inches] | 1.875 |
| Length [inches] | 13.75 |
| Weight [pounds] | 3.9 |
| Width [inches] | 5.75 |
| Hose I.D. [inches] | 3/8″ |
| Vacuum Type | Non-Vacuum |
| EAN (UPC) Code | 0616026526600 |
| Motor Type | Planetary-Geared |
| Tool Style | Straight Line |
Disassembly/ Assembly Instructions
| Disassembly/ Assembly Instructions |  |
|---|
Air Tool Maintenance Guide
| Tool Maintenance Guide | |
|---|
