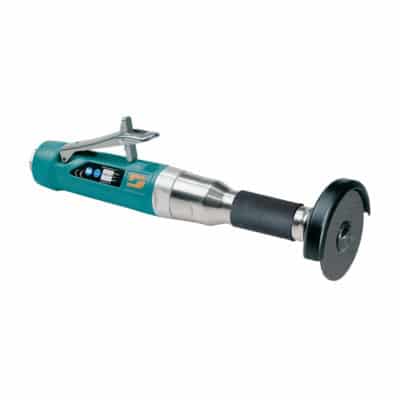

Dynabrade 52578 3″ (76 mm) Dia. Straight-Line 6″ (152 mm) Extension Cut-Off Wheel Tool, Rear Exhaust, 1 HP, 20,000 RPM, 3/8″-24 Spindle

$818.00

1 hp, 20,000 RPM, Rear Exhaust, 3/8″-24 Spindle Thread

Cut-Off Wheel Tool, for efficient cutting of sheet metal, frame rails, clamps, bolts, etc.
3″ Diameter, Straight Line, 1 hp, 6″ Extension, 20,000 RPM.
Model accepts 4″ (102 mm) diameter Type 41 reinforced Cut-Off Wheels, with 3/8″ (9.5 mm) center hole
Governor-controlled motor maintains RPM under heavy load.
Safety-lock lever is included; rear exhaust.

Tool Specifications

Mfr. Model # 52578

Abrasive Wheel Dia. [inches]	3″
hp	1.0
Max. Air Flow [SCFM]	39.0
Max. RPM	20,000
Tool Spindle Thread	3/8″- 24 Male
Air Inlet Thread	3/8″ NPT
Exhaust Type	Rear
CE Certified	Yes
EAC Certified	Yes
Height [inches]	3.125
Length [inches]	14.875
Weight [pounds]	4.2
Width [inches]	5.75
Hose I.D. [inches]	3/8″
Vacuum Type	Non-Vacuum
EAN (UPC) Code	0616026525764
Tool Style	Straight Line

Parts

Parts Page	52578
Tune-Up Kit Page	96532
Drop-in Motor	01911

Disassembly/ Assembly Instructions

Disassembly/ Assembly Instructions

Air Tool Maintenance Guide

Tool Maintenance Guide

Dynabrade 52578 3″ (76 mm) Dia. Straight-Line 6″ (152 mm) Extension Cut-Off Wheel Tool, Rear Exhaust, 1 HP, 20,000 RPM, 3/8″-24 Spindle

Tool Specifications

Parts

Disassembly/ Assembly Instructions

Air Tool Maintenance Guide
