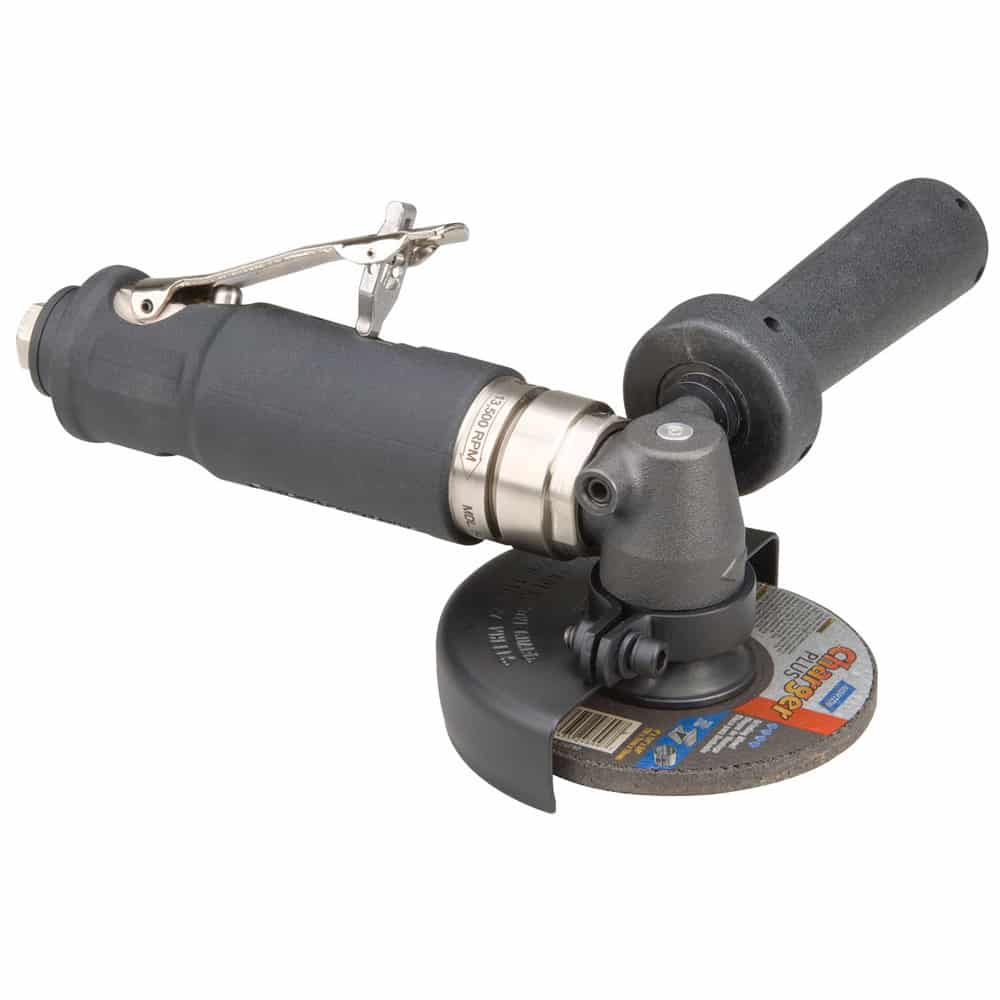

Dynabrade 54787 4″ (102 mm) Dia. Right Angle Type 27 Depressed Center Wheel Grinder, Steel Housing, .7 HP, 12,000 RPM, 3/8″-24 Spindle

$1,075.00

.7 hp, 12,000 RPM, Steel Housing, Rear Exhaust, 3/8″-24 Spindle

Model accepts optional 4″ (102 mm) diameter Type 27 reinforced Depressed Center Wheels, with 3/8″ (10 mm) center hole; wheel width of 1/8″ to 1/4″ (3 mm to 6 mm).
Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.
Adjustable wheel guard provides maximum operator protection.
Steel housings offer increased durability! Model includes steel right angle housing.
Each model includes side handle for left or right-hand use.

Tool Specifications

Mfr. Model # 54787

Abrasive Wheel Dia. [inches]	4″
hp	0.7
Max. Air Flow [SCFM]	40.0
Max. RPM	12,000
Tool Spindle Thread	3/8″ – 24 Male
Air Inlet Thread	1/4″ NPT
Exhaust Type	Rear
CE Certified	Yes
EAC Certified	Yes
Height [inches]	3.0625
Length [inches]	8.0625
Weight [pounds]	3.7
Width [inches]	6.5
Hose I.D. [inches]	3/8″
Vacuum Type	Non-Vacuum
EAN (UPC) Code	0616026547872
Tool Style	Right Angle

Parts

Parts Page	54787
Tune-Up Kit Page	98623
Drop-in Motor	01891

Disassembly/ Assembly Instructions

Disassembly/ Assembly Instructions

Air Tool Maintenance Guide

Tool Maintenance Guide
