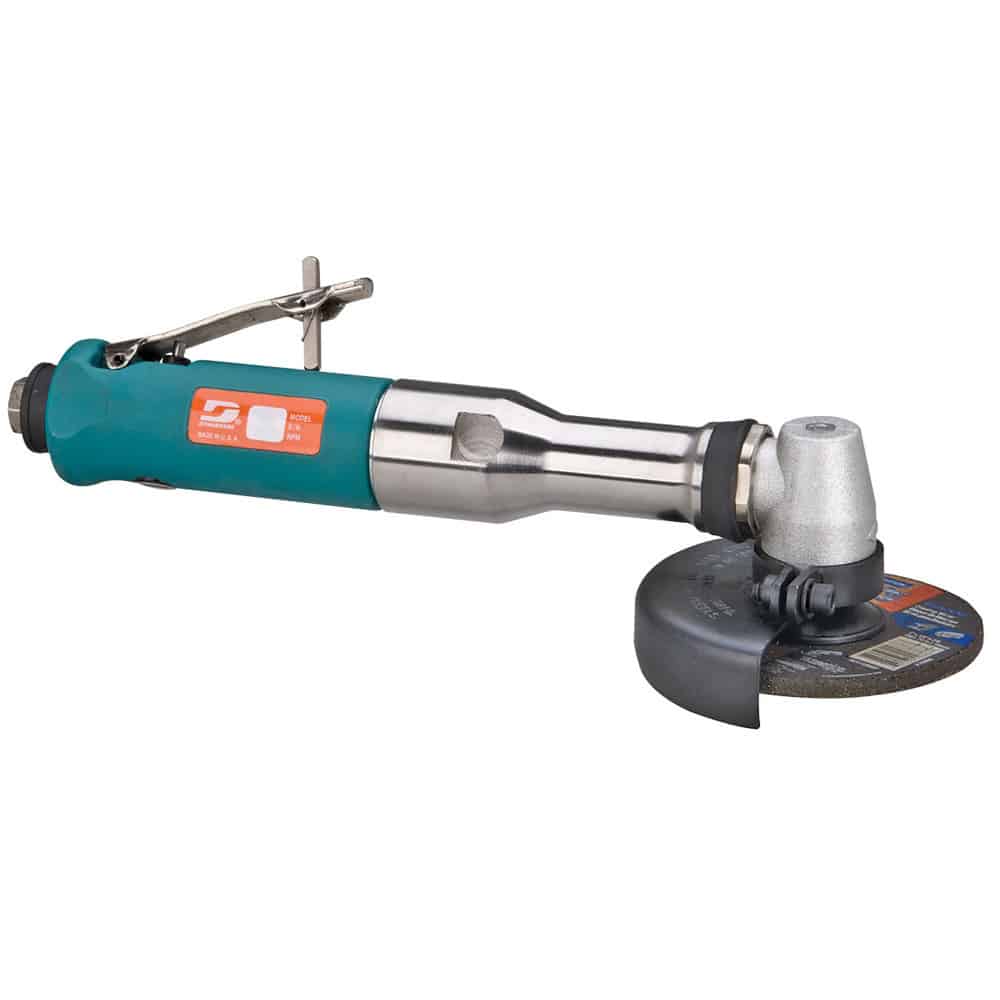

Dynabrade 54777 4″ (102 mm) Dia. Extended Right Angle Type 27 Depressed Center Wheel Grinder, .7 HP, 13,500 RPM, 3/8″-24 Spindle

$1,112.00

.7 hp, 13,500 RPM, Composite, Rear Exhaust, 3/8″-24 Spindle

Model accepts optional 4″ (102 mm) diameter Type 27 reinforced Depressed Center Wheels, with 3/8″ (10 mm) center hole; wheel width of 1/8″ to 1/4″ (3 mm to 6 mm).
Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.
Adjustable wheel guard provides maximum operator protection.
Models include aluminum right angle housing.
Extension design allows longer reach on work-piece, and two-hand control for added comfort.

Tool Specifications

Mfr. Model # 54777

Abrasive Wheel Dia. [inches]	4″
hp	0.7
Max. Air Flow [SCFM]	40.0
Max. RPM	13,500
Tool Spindle Thread	3/8″ – 24 Male
Air Inlet Thread	1/4″ NPT
Exhaust Type	Rear
CE Certified	Yes
EAC Certified	Yes
Height [inches]	3.0625
Length [inches]	11.375
Weight [pounds]	3.5
Width [inches]	6.5
Hose I.D. [inches]	3/8″
Vacuum Type	Non-Vacuum
EAN (UPC) Code	0616026547773
Tool Style	Right Angle

Parts

Parts Page	54777
Tune-Up Kit Page	96680
Drop-in Motor	01882

Disassembly/ Assembly Instructions

Disassembly/ Assembly Instructions

Air Tool Maintenance Guide

Tool Maintenance Guide
