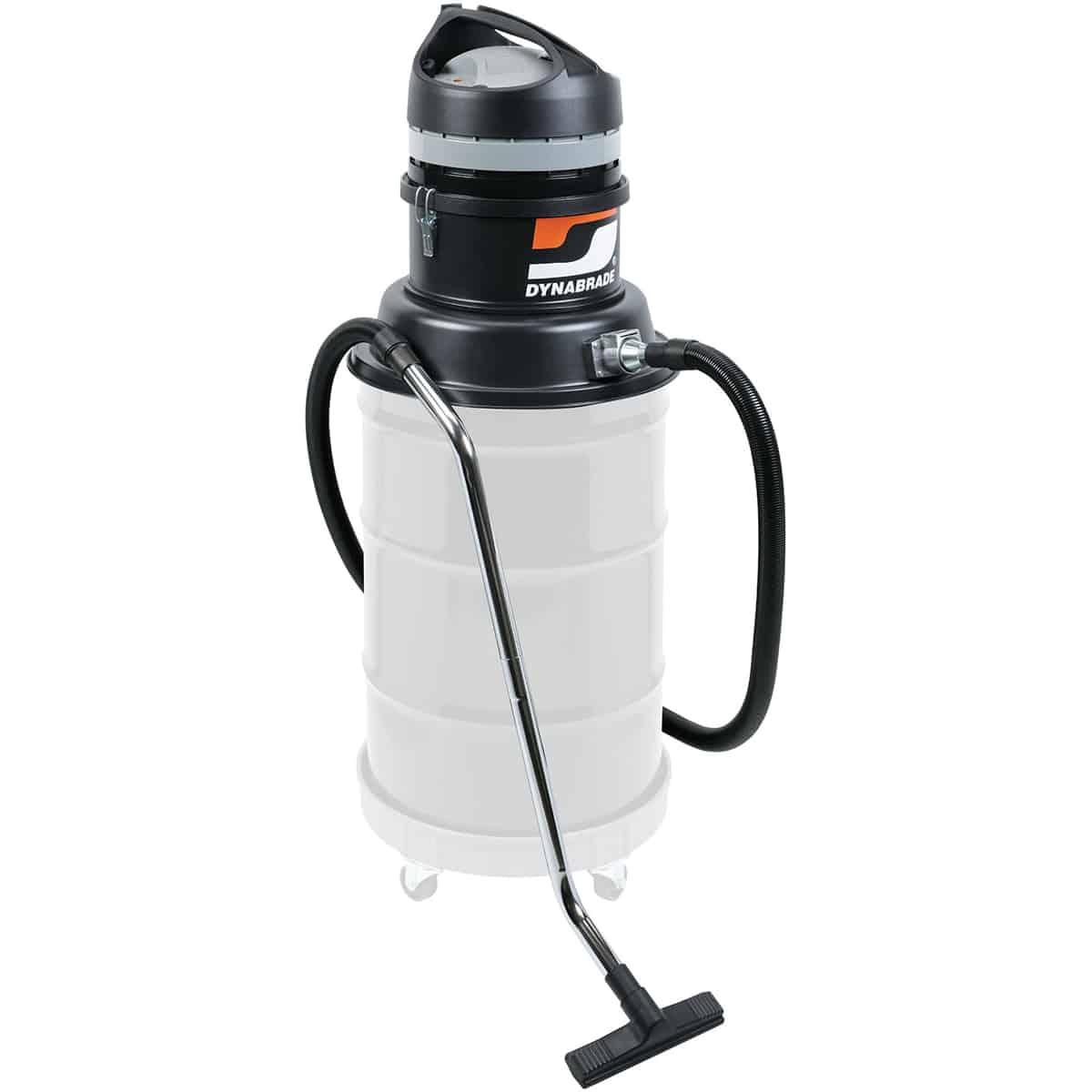

- Dynabrade’s family of DrumVac Kits are a multi-industry clean air solution with fully integrated features designed to keep an operator working without being concerned with the arduous task of changing out a vacuum bag in high collection scenarios. Used in conjunction with a 55-gallon drum (sold separately), this system lends itself to one of the largest capacity portable dust collection systems in the industry.
- 55 Gallon drum equates to large collection capacity. No bag change-out requirements. Anti-Static clean up kit eliminates static discharge to operator.
- Bypass motor utilizes clean air to cool and extend motor life. Overload protection powers down vacuum prior to motor failure from overheating. Self-cleaning HEPA filtration provides a burst of clean air through filter, promoting proper airflow for power-head. performance and extended filter life. Selected single operator mode. Integrated auto on/off when using system with tools.
- Material Collect Dry Dust Types: Wood, Fiberglass, Solid surface, Composites. Please consult factory for additional qualified materials.
- What’s In The Box: Complete Kit with Vacuum Powerhead, filter, interface ring and supporting general purpose cleaning kit. Collateral technical & safety documentation.
Vacuum Specifications
Mfr. Model # 61200
| Amps [A] | 15 |
|---|---|
| Filter Rating [Micron] | 0.3 |
| Frequency [Hz] | 60 |
| Voltage | 120 |
| Motor [Electric] Phase | Single |
| Capacity [gal] | 55.0 |
| Country Of Origin | US |
| Micron | 0.3 |
| Sound Level dB[A] | 75 |
| Water Static Lift | 94 in. |
| Color | Black, Orange, Gray |
| Minimum Order Quantity | 1 |
| Motor Type | Bypass |
| Certification | CE, EAC, UKCA |
| Duty | Heavy Duty |
| Height [inches] | 26.5 |
| Length [inches] | 25 |
| Weight lb. (kg) | 44.25 |
| Width in. (mm) | 25 |
| Pkg. Height in. (mm) | 34.5 |
| Pkg. Length in. (mm) | 30.5 |
| Pkg. Quantity | 1 |
| Pkg. Weight lb. (kg) | 55 |
| Pkg. Width in. (mm) | 30.5 |
| Auto On Off | No |
| Collected Material | Non-Metallic |
| Collection Category | M-Class |
| Filter Rating | HEPA13 |
| Filtration Media | Dry |
| CE Certified | No |
| EAN (UPC) | 0616026612006 |
| EAC Certified | No |
| Mobility | Yes |
| Powered By | Electric Motor |
| Products Per Pkg. | 1 |
